Alpitronic HYC
Powerful. Compact. Refined. The Alpitronic HYC series delivers reliable DC fast charging up to 400 kW for commercial, fleet, and public charging.
Up to 400 kW Output

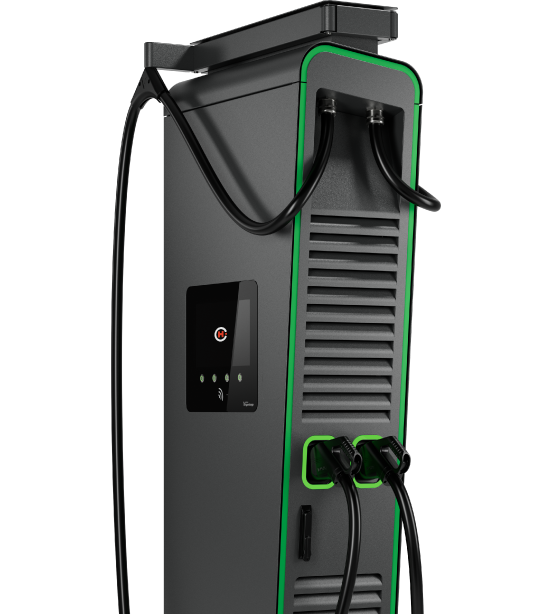

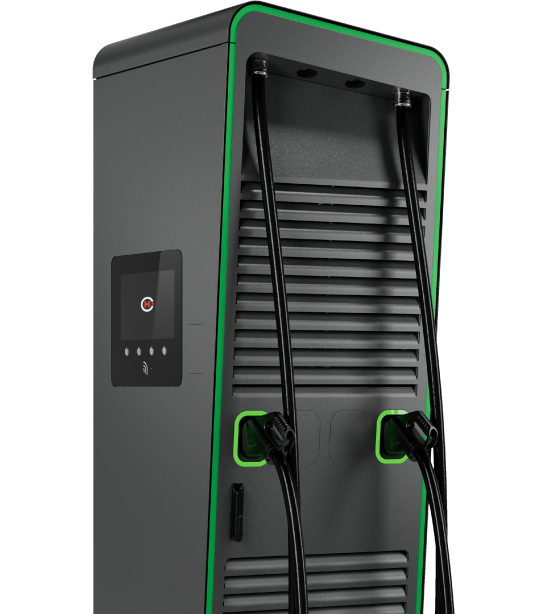

The Alpitronic HYC series delivers modular DC fast charging from 100 to 400 kW, with Power-Stack architecture that scales output to match site needs. The HYC200 supports up to 200 kW, while the HYC400 delivers up to 400 kW for high-demand locations.
Compact All-in-One Design
With a sleek, space-saving footprint, the HYC series is ideal for locations where high-power charging needs to fit within limited site space. Customizable housing, branding options, and integrated cable management help create a polished, easy-to-use charging experience for drivers.
Efficient Charging Performance
Designed to reduce energy loss while delivering consistent power, the HYC series reaches up to 97.5% efficiency at full load. For site owners, that means a high-performance charging solution built to support busy locations and long-term infrastructure needs.
Alpitronic HYC Spec Sheets
Alpitronic HYC Series Ownership Options

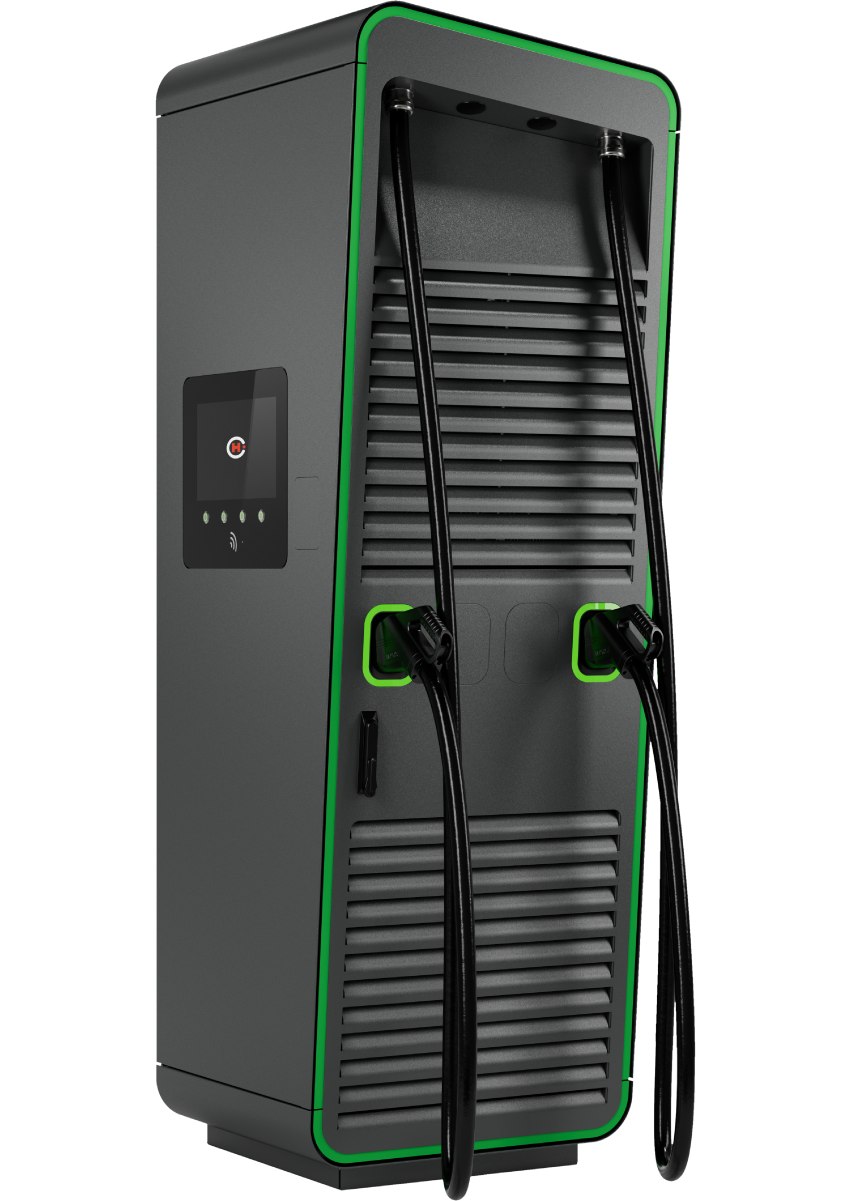

Alpitronic HYC400 Features
Hover or tap the orange circles to view each feature:
Optional Charging Cable Management
Dual Port Connectors
15.6” Display with RGB Connector Status
Optional Credit Card Reader
Customizable Housing
Maximum Output
400 kW
Current
Up to 1200 A
Voltage
150-1,000 V
Number of Ports
Up to 4
Connector Type
CCS/NACS
Charging Cable Length
11.5 ft, 16.4 ft, 25 ft
Connectivity
4G, LAN
IP Code
IP54
Dimensions
88″ x 29″ x 26″
Weight
Up to 1965 lbs
