Autel MaxiCharger AC Pro
Innovative. Reliable. Scalable. The Autel MaxiCharger AC Pro sets the standard for future-proofed EV charging in Business settings.
Up to 19.2kW output at 80 amps
The Autel MaxiCharger AC Pro offers powerful charging with up to 19.2 kW at 80 amps, ideal for businesses that require rapid and efficient EV charging. This high-capacity output ensures vehicles are charged quickly, providing convenience and reducing wait times for drivers.

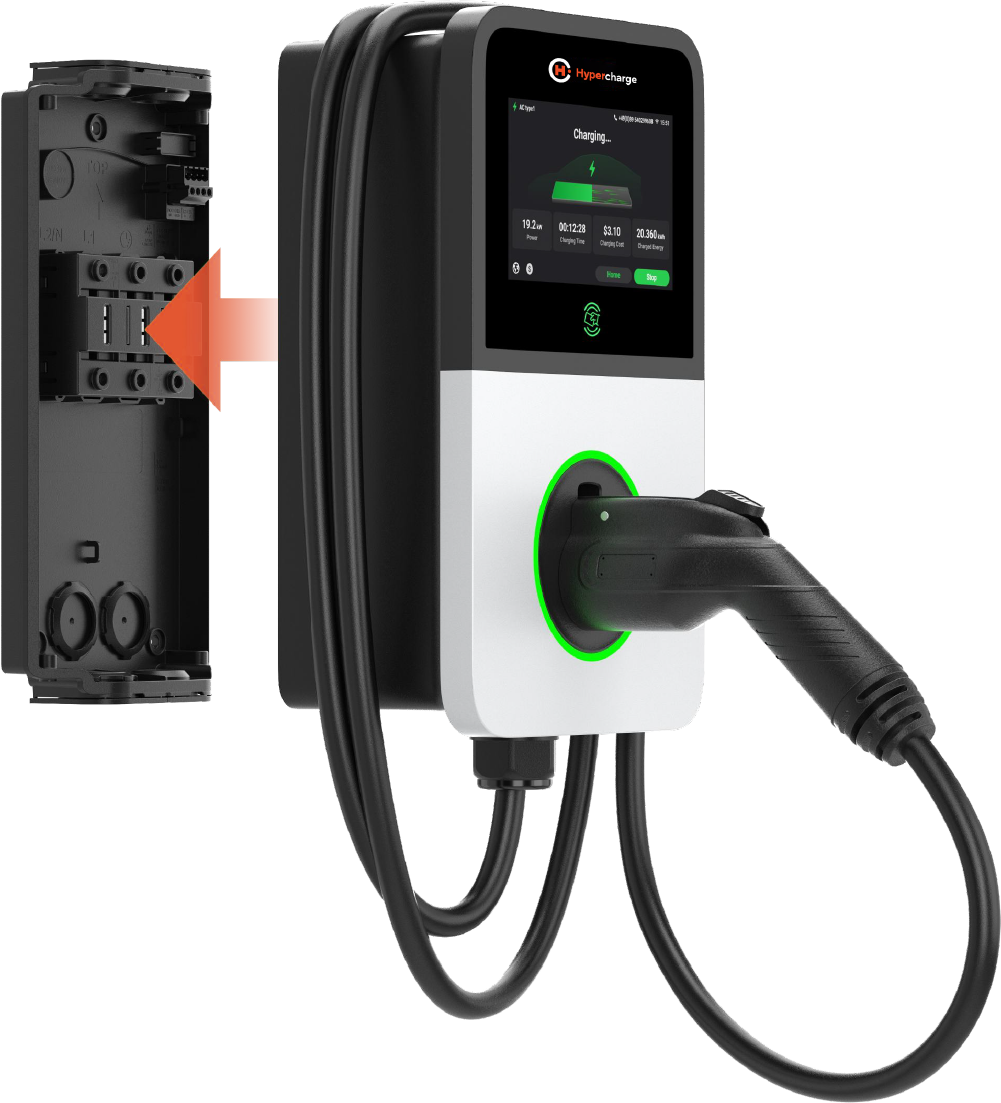

One-Click Snap-in Installation
Designed for efficiency, the Autel MaxiCharger AC Pro features a one-click snap-in installation system that streamlines setup, completing installation in just 8 minutes. This system uses a separate mounting plate to organize wiring, allowing for flexible electrical connections and quick commissioning, making it perfect for rapid deployments and easy maintenance.
Dual Mesh Networking
The Autel MaxiCharger AC Pro is equipped with dual mesh networking through WiFi and Wi-SUN, ensuring a robust and reliable connection. This advanced networking infrastructure supports up to 200 AC Pro units, maintaining a 99.9% online rate, reducing construction costs, and providing seamless operation across your charging network.
Autel MaxiCharger AC Pro Spec Sheet
Autel MaxiCharger AC Pro Ownership Options
Autel MaxiCharger AC Pro Features
Hover or tap the orange circles to view each feature:
7” High Definition Touchscreen
RFID Reader
Connector Dock
SAE J1772 Connector
19ft Charging Cable
Mounting Plate
Maximum Output
19.2 kW
Current
Up to 80 A
Voltage
208-240 V
Number of Ports
1
Connector Type
SAE J1772/NACS
Charging Cable Length
19ft/25ft
Connectivity
4G, Wi-Fi, LAN
Enclosure Rating
NEMA 3S, IK10
Dimensions
14.5″ x 8.5″ x 5.1”
Weight
20.7 lbs
Smart Charging
The Autel MaxiCharger AC Pro supports Plug and Charge (ISO 15118) technology, enabling seamless and secure charging sessions. Real-time data communication to the back-end management system provides station owners with valuable insights and efficient station operation.
Robust Enclosure
The charger’s NEMA 3S and IK10 rated enclosure is designed for durability, offering excellent protection against vandalism and harsh environmental conditions, ensuring long-term reliability and performance.
Energy Management
Equipped with advanced load management technology, the Autel MaxiCharger AC Pro optimizes power distribution across multiple chargers, reducing infrastructure costs and operational expenses. This feature allows site owners to scale their network efficiently and economically.

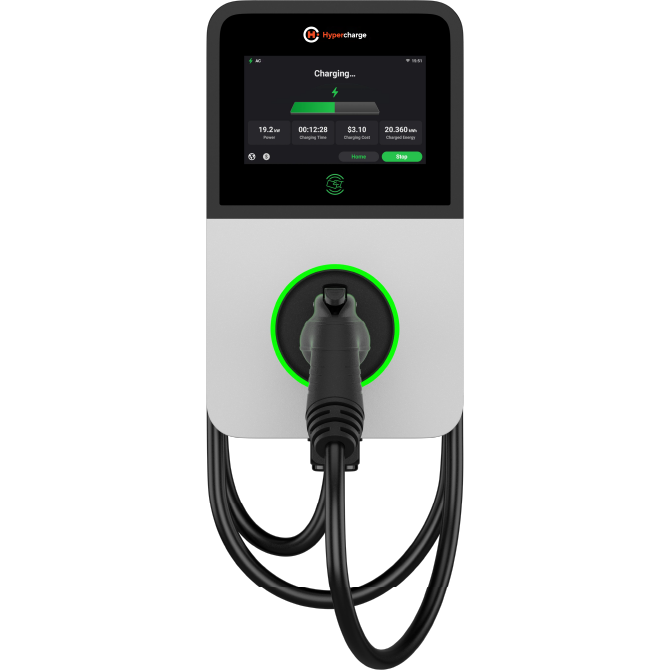

7″ HD Touchscreen
Featuring a 7-inch HD touchscreen, the Autel MaxiCharger AC Pro offers a modern, intuitive interface powered by Android. This smart display provides easy access to essential charging information and station settings, enhancing user experience and operational control.
Mounting Options
Either mounted on a wall or pedestal. Each unit has an integrated connector dock, which reduces tripping hazards, and creates a cleaner visual.
Maintenance
All major components are field swappable, which allows Hypercharge to support the hardware long-term without having to replace the charging station.
Warranty
The Autel MaxiCharger AC Pro comes with a 5-year warranty on the charger body, backplate, and internal components, with a 1-year warranty on the display screen, charging cable, and connector. Extended coverage is available with the Hypercharge Comprehensive Warranty, offering peace of mind and long-term protection.
